5V Boost Converter Step-Up Power Module Lithium Battery Charging Protection Board LED Display For DIY Charger 134N3P, Interface: Type-C
5V Boost Converter Step-Up Power Module Lithium Battery Charging Protection Board LED Display For DIY Charger 134N3P, Interface: Type-C
No reviews
Precio habitual
Rs. 800.00
Precio habitual
Rs. 1,100.00
Precio de oferta
Rs. 800.00
Los gastos de envío se calculan en la pantalla de pago.
CYBER WEEK Sale
Save 10%, when you buy 2+ Items
00
Days
00
Hours
00
Mins
00
Secs
Discount auto-applied at checkout No Code Needed
Free Shipping Tracked
Estimated delivery: Dec 2 - Dec 12
Cantidad
No se pudo cargar la disponibilidad de retiro
✓ Your Purchase is Protected
Join 40,000+ happy customers who shop risk-free
Free Worldwide Shipping Tracked
Ships in 1-3 days • Save £8.99
6-Month Guarantee Protected
Manufacturing faults covered
30-Day Easy Returns Risk-Free
Changed your mind? Full refund
Secure Checkout SSL
Your payment info is protected
✓ 40,000+ customers trust us with their purchases
1. With charging and discharging status indication: red light blinks when charging, red light stays on for full, and blue light blinks when discharging
2. Built-in charging and discharging power MOS
3. Input voltage: 3.7-5.5V
4. Charging current: 1A
5. Output current: 1A
6. Output voltage: 5V
7. BAT discharge termination voltage: 2.9V
8. Preset 4.2V charging voltage, accuracy about 1%
9. Discharge efficiency: 85% (input 3.7V, output 5V/1A)
10. 8uA standby current
11. Integrated charge management and discharge management
12. Intelligent temperature control and over-temperature protection
13. Integrated output over-voltage/short circuit/heavy load/over-charging/over-discharging protection
14. Support trickle mode and zero voltage charging
15. Available batteries: 18650 batteries, cell phone batteries, tablet batteries, MP3 batteries, such as 3.1V-4.2V polymer lithium batteries (Note: Parallel to increase the capacity, series is to increase the voltage, can only be used in parallel)
16. Unusable batteries: dry cell batteries, storage batteries, 1.2V rechargeable batteries, nickel-metal hydride batteries, 3.2V lithium iron polymer lithium batteries, etc.

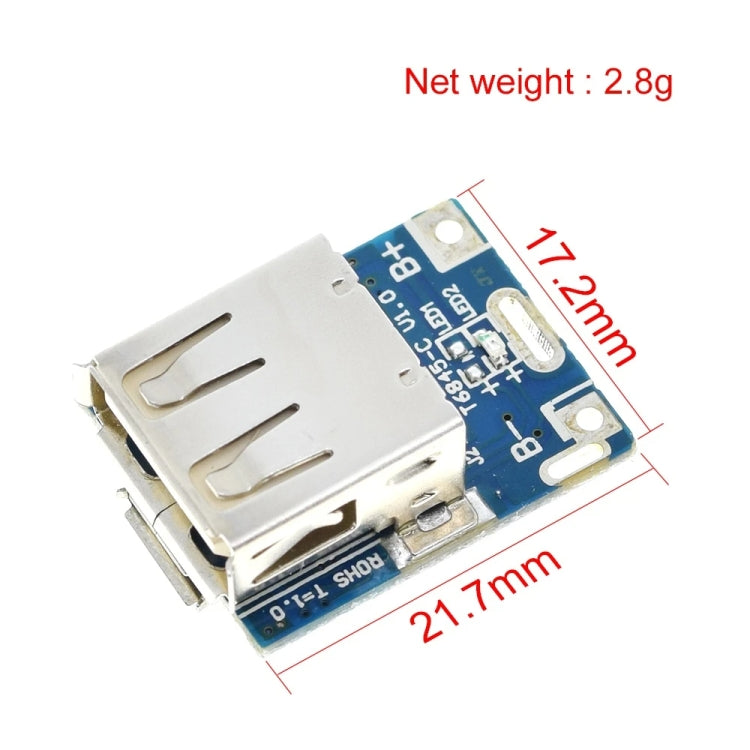

17. Size: about 20 x 18 x 1mm
